TV-W.TH 7000 C
Product Description
The TV-W.TH 7000 C is a portable, rugged, single-function EMI system for inspecting drill
pipe and tubing in extreme environments. Transverse flaw detection and
TRUEWALL™ solid state (Hall effect) wall monitoring functions are standard on
the unit. Its portable design allows the unit to be operated at the rig-site or
in a pipe yard. The TV-W.TH 7000 C is designed to meet most industry
specifications set forth by API, DS-1, etc.
TV-W.TH 7000 C
Specifications
Technical and Performance Data
Capacity:
2 3/8" to 6 5/8" O.D. drill pipe
Functions:
Transverse flaw
detection (MFL)
TRUEWALL™ magnetic wall thickness monitoring (MFD)
Data Acquisition:

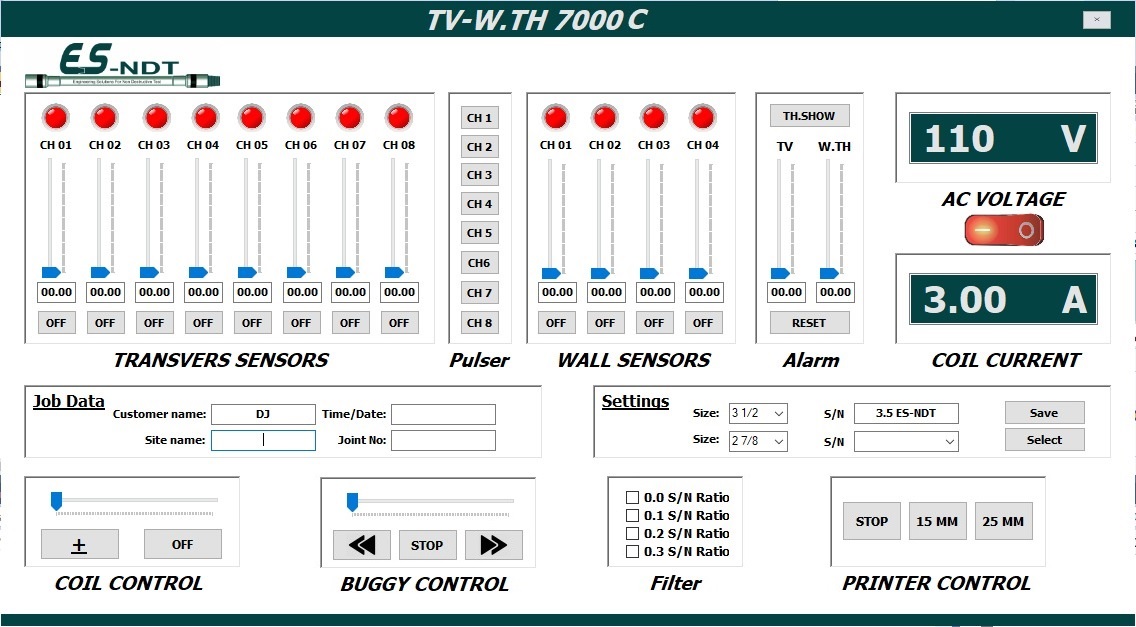

Data acquisition system with ruggedized laptop computer (all functions performed on computer with multi-color data display)
Production Rate:
Up to 150 ft /minute
Major Components:
Electronics console
Ruggedized laptop computer with software
Power and signal cables
Powerful magnetizing coil
Inspection canister
Detector insert kits with split detector and tubing standards (sizes optional)
Horizontal rack for pipe yard inspection (optional)
Small canister with no split detector (optional)
Method of Operation
The TV-W.TH 7000 C is a portable, rugged, dual-function EMI system for inspecting drill pipe and tubing in extreme environments. Transverse flaw detection and TRUEWALL™ solid state (Hall effect) wall monitoring functions are standard on the unit. Its portable design allows the EMI Unit to be operated at the rig-site or in a pipe yard. The TV-W.TH 7000 C is designed to meet most industry specifications set forth by API, DS-1, etc
